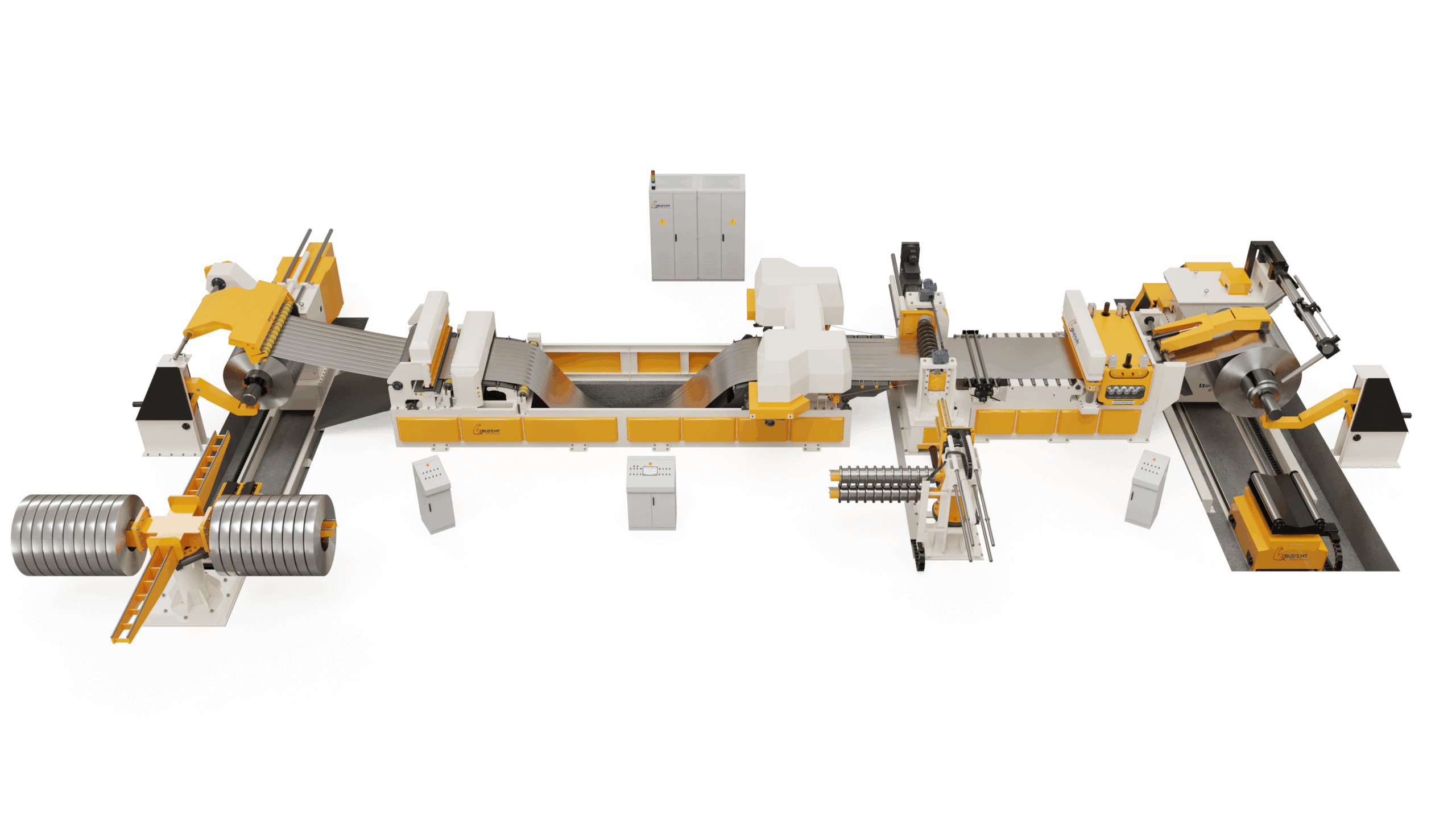

BMT Coil Slitting Lines

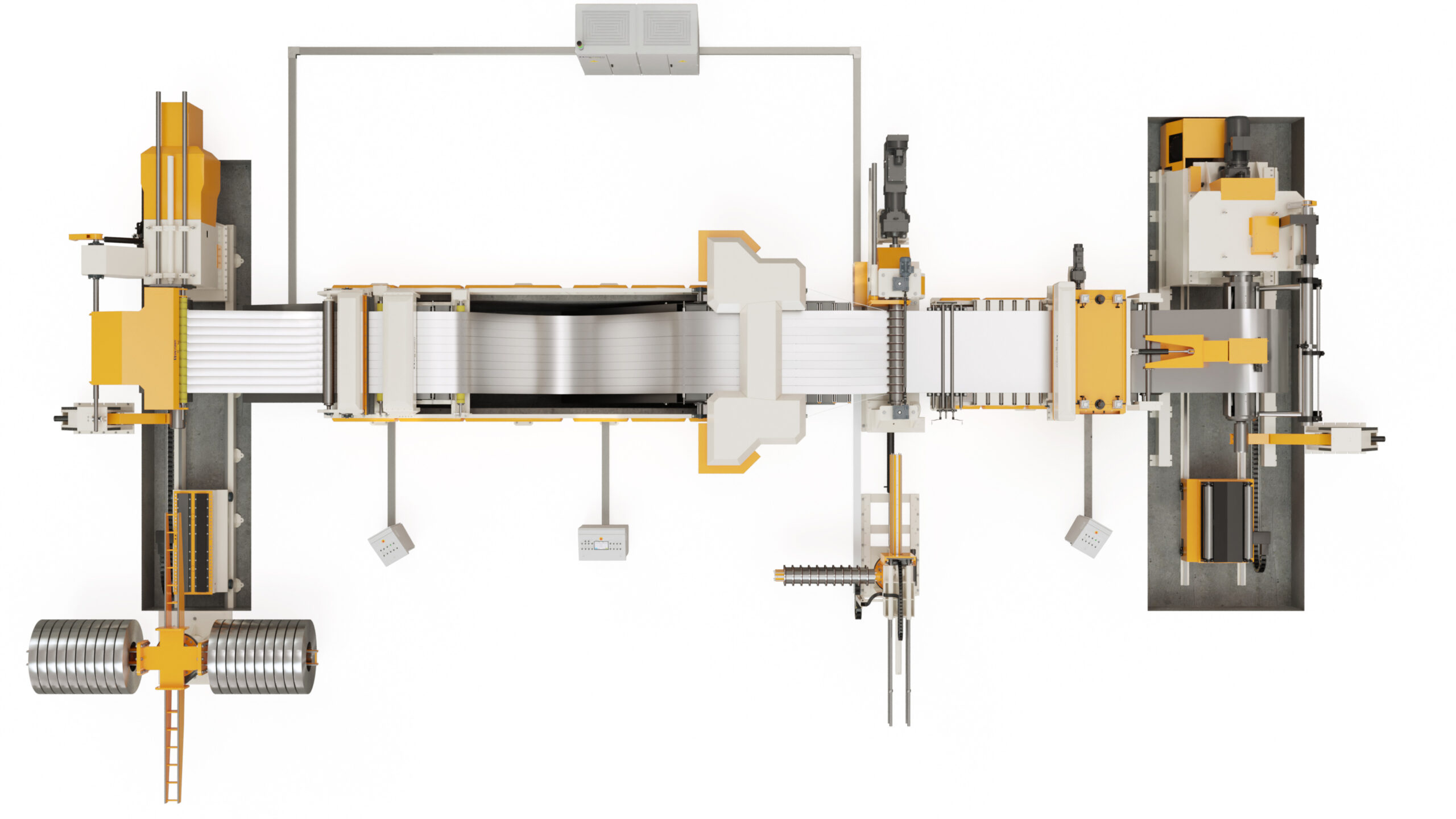

BMT Coil Slitting Lines - Image 2

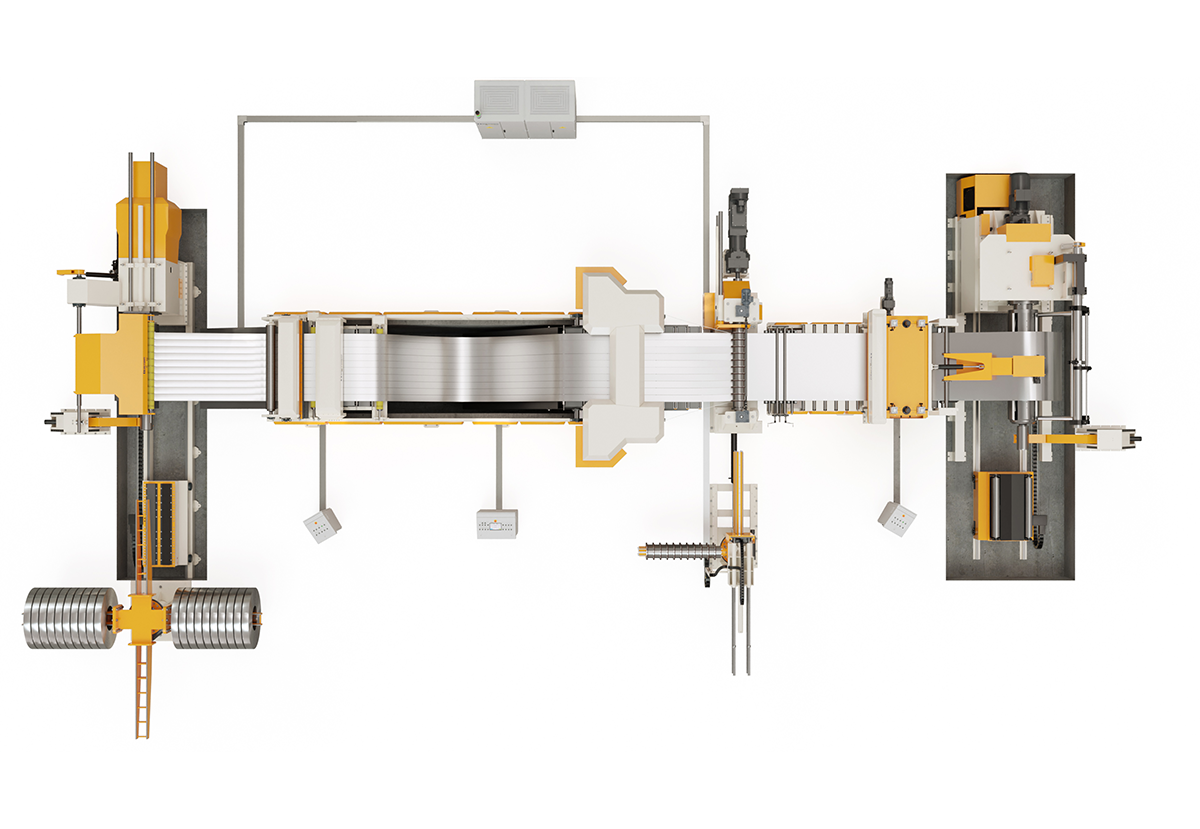

BMT Coil Slitting Lines - Image 3

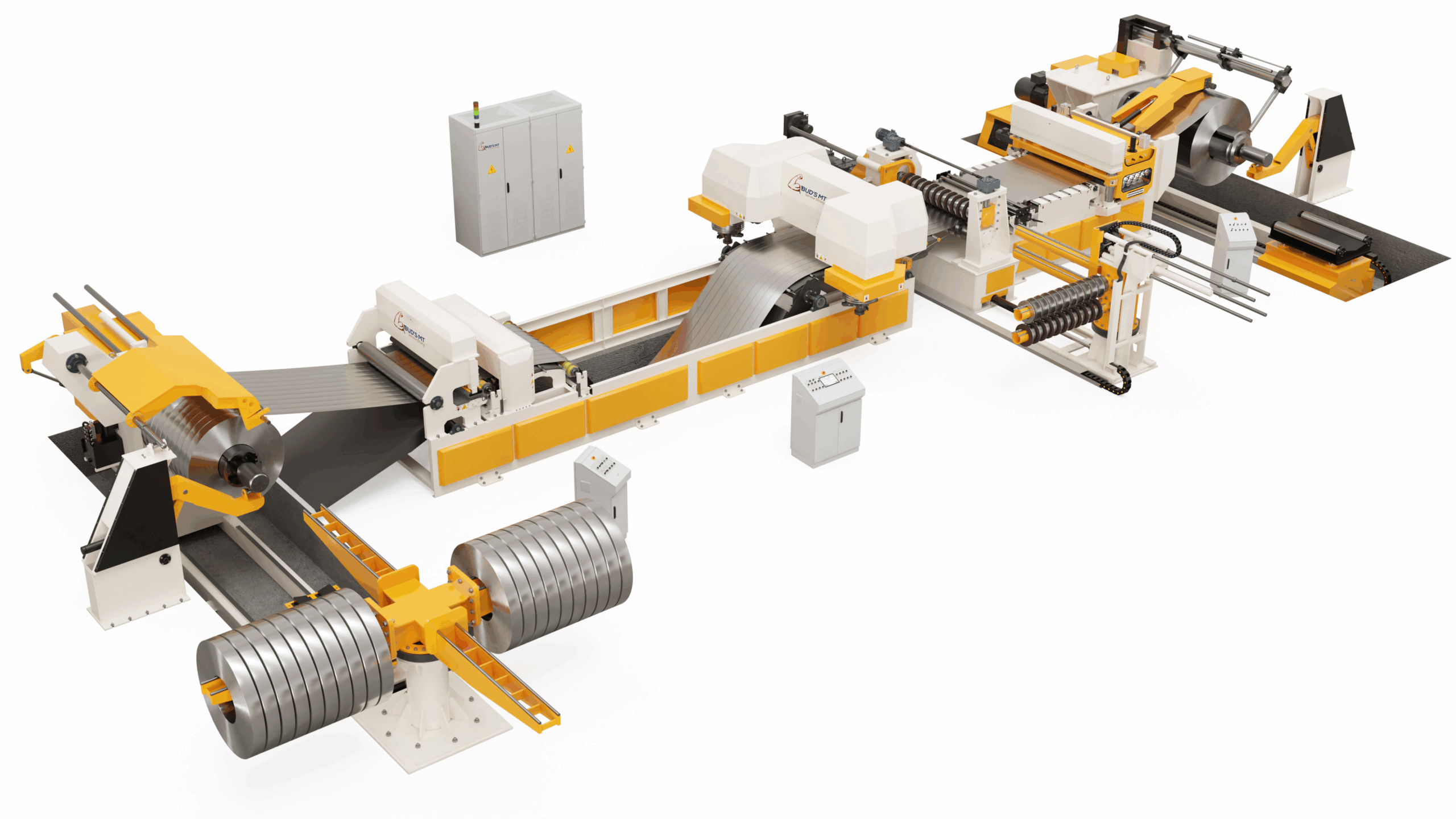

BMT Coil Slitting Lines - Image 4

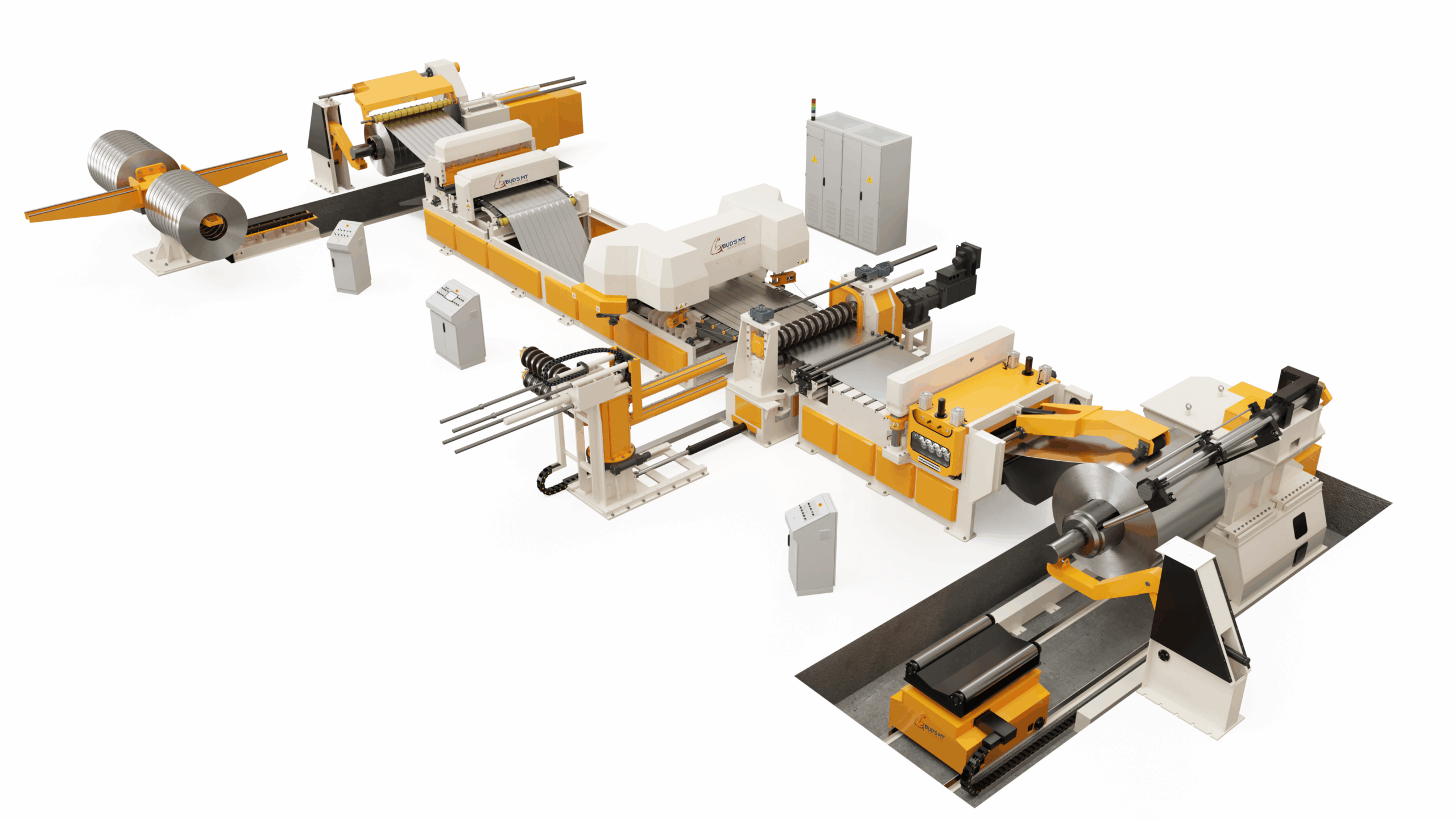

BMT Coil Slitting Lines - Image 5
,

BMT Coil Slitting Lines

Our Coil Slitting Lines are Turnkey Systems Design According to Special Demands and Needs of our Customers.

With Our Continuously Renewing and Developing Design Studies of our R&D Team, By Increasing the Slitting Speed ​​of Slitting Lines, High Capacity Works Can Be Done and It Enables the Operator to Work More Quickly and Efficiently.

Categories: ,

Specifications

Model Material Width (mm) Weight – Ton Line Speed
SLT1602 0.3 2 1600 10 – 15 – 20 150 m / min
SLT1603 0.5 3 1600 10 – 15 – 20 120 m / min
SLT1604 0.8 4 1600 15 – 20 – 25 150 m / min
SLT1606 1 6 1600 15 – 20 – 25 100 m / min
SLT1608 2 8 1600 15 – 20 – 25 80 m / min

Equipped With

Hydraulic Loading Car
Hydraulic Decoiler
Coil Transfer Platform
Slitting Unit / Turnstile System
Slitting Blades
Scrap Winder(s)
Pit Covers & Pit
Separating & Tensioning Unit
Over Arm Separator
Hydraulic Recoiler
Outboard Support
Exit Coil Car
Electronic Control Panels
