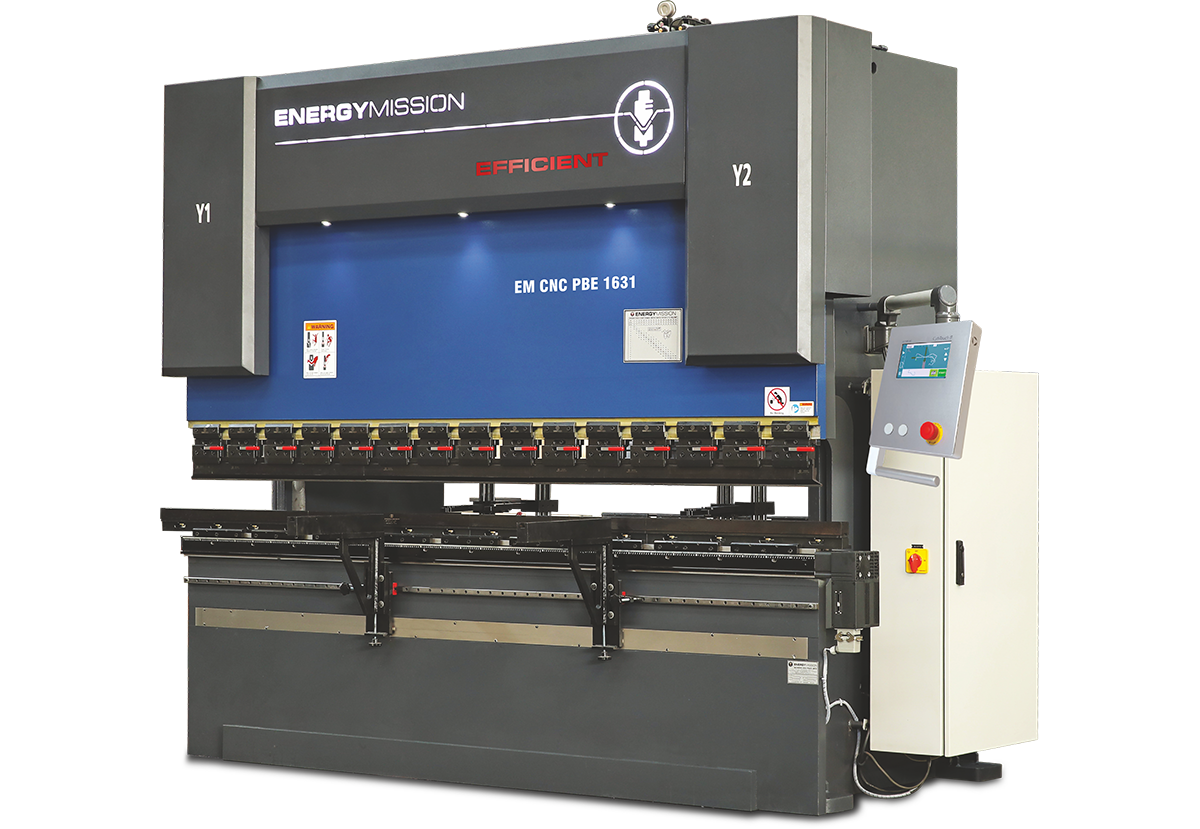

Efficient Series Hydraulic CNC Press Brake

CLICK HERE:ENERGY MISSION 2022 CNC BROCHURE

CNC PRESS BRAKE EFFICIENT SERIES

RANGE LENGTH 30 MT to 2000 MT 1250 mm to 10000 mm

Standard Features

3 Axis machine with automatic, accurate & fast back gauge
CybTouch 8PS Controller from CYBELEC Switzerland
Rigid upper beam guide on 12-point roller bearings
Ultrasonically & tensile tested IS:2062 grade steel structure ensures the rigidity & avoid deflection.
The frame is machined on Floor Boring Machine ensuring single reference accurate machining.
Quick release clamps
Back gauge assembly included ball screw, AC Servo drive, LM guides & timer belt
Back gauge fingers mounted on LM guide
Quick ‘V’ groove change over with self-centred die with rail.
Hardened & grounded 2‘V’ / 4‘V’ die & semi gooseneck punch
Front sliding sheet support with LM guides for easy movement

Accuracies:

Press Beam Depth Accuracy: ± 0.01mm
Press Beam Depth Repeatability: ± 0.01mm
Back Gauge Accuracy: ± 0.1mm
Back Gauge Repeatability: ± 0.1mm
