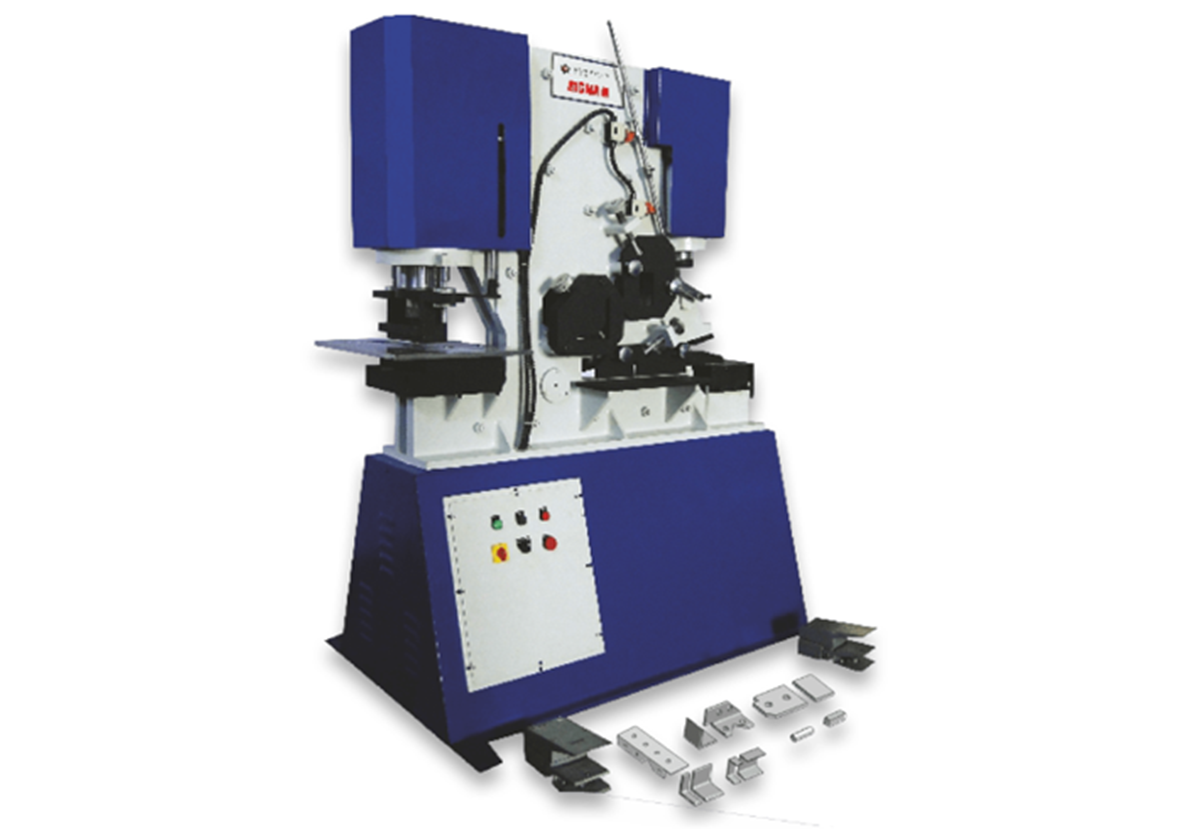

IW-50 Sigma Iron Worker

IW-50 Sigma Iron Worker

Energy Mission 55-ton Ironworker
ENGINEERING EXCELLENCE WITH COST EFFECTIVE SOLUTION

Click Here:ENERGY-MISSION-2022-IRONWORKER-BROCHURE

Energy Mission Hydraulic Iron Worker (SIGMA) is designed to give an effective solution to all the cutting & punching problems
of flat and Section with satisfactory work quality from robust and compact machine

TECHNICAL SPECIFICATION		55 T
PUNCHING	Diameter x max. thickness	Ø .8 x .6”
	Diameter x thickness	Ø 1.5 x .3”
	Maximum Diameter	Ø 2 x .3”
	Cylinder Stroke	3”
	Stroke count in (.8”)	15 Strokes/min.
	Throat depth	9.8”
	Working height	39”
	Clamping Arrangement	Manual
ANGLE SHEAR	Angle section (90°)	4x4x.4”
	Angle section (45°)	2.75x.24”
	Working height	39”
SHEET METAL SHEAR	Sheet metal	6x.6”
	Sheet metal	9.8x.4”
	Blade Length	12.75”
	Shearing with angle	4x4x.4”
	Working height	34”
NOTCHING	Thickness	.24”
	Width	1.8”
	Depth	3”
	Working height	35”
CHANNEL SHEAR	Channel section (90°)	4 x 2” (C-Channel)
OPTIONAL TOOLS	Round / Square Shear	Ø 1.25-1.25”
OPTIONAL TOOLS	I-Beam section (90°)	4×2” (I-Beam)
OPTIONAL TOOLS	Special V-Notching tooling	3 x 3 x.24”
OPTIONAL TOOLS	V-bending	11.8  x .31”
TECHNICAL DETAIL	Motor Power	5 Hp.
	Weight (Approx.)	3,750 lbs.
	Machine Dimensions (LxWxH)	62 x 40 x 81”
