Specifications
Model:MKE-50T/2000
Nominal pressure:500KM
(A)Bending length:2000 mm
(B)Column spacing:1700 mm
(C)Throat Depth:350 mm
(D)Cylinder stroke:180 mm
(E)Max open height:420 mm
(F)Mold height: 470 mm
Xaxis moving speed:600 mm/s
Drive speed:200 mm/s
Compression speed:17 mm/s
Return speed:180 mm/s
Machine axis: 6-axis, no compensation
X-axis stroke:500 mm
R-axis stroke:150 mm

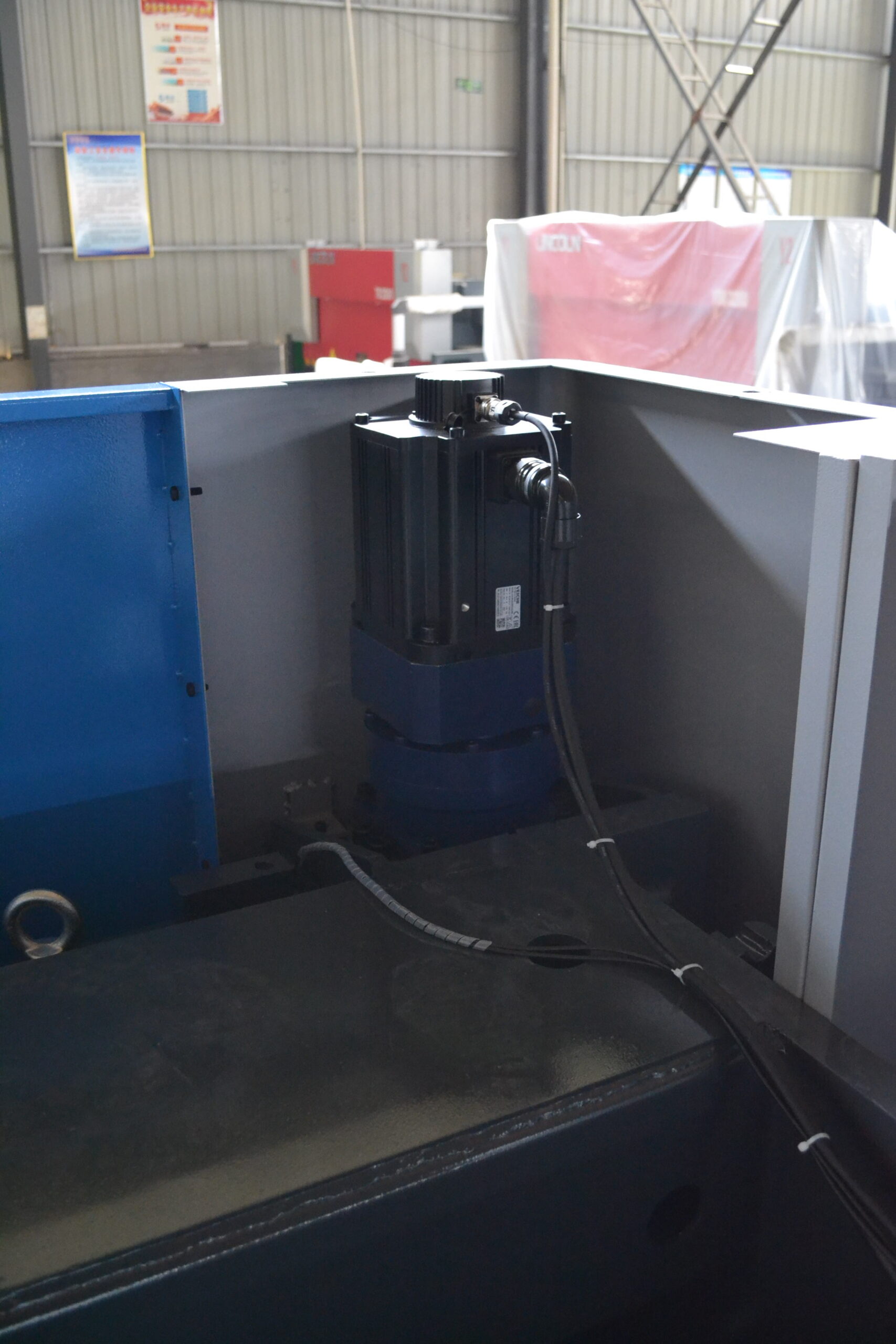

Main motor power:2*7.5 KW
Power capacity: 35KVA
Weight: 5000 kg
Machine dimensions: 2500x1650x2500 mm
All data are approximate. Design and specifications subject to change without notice.
