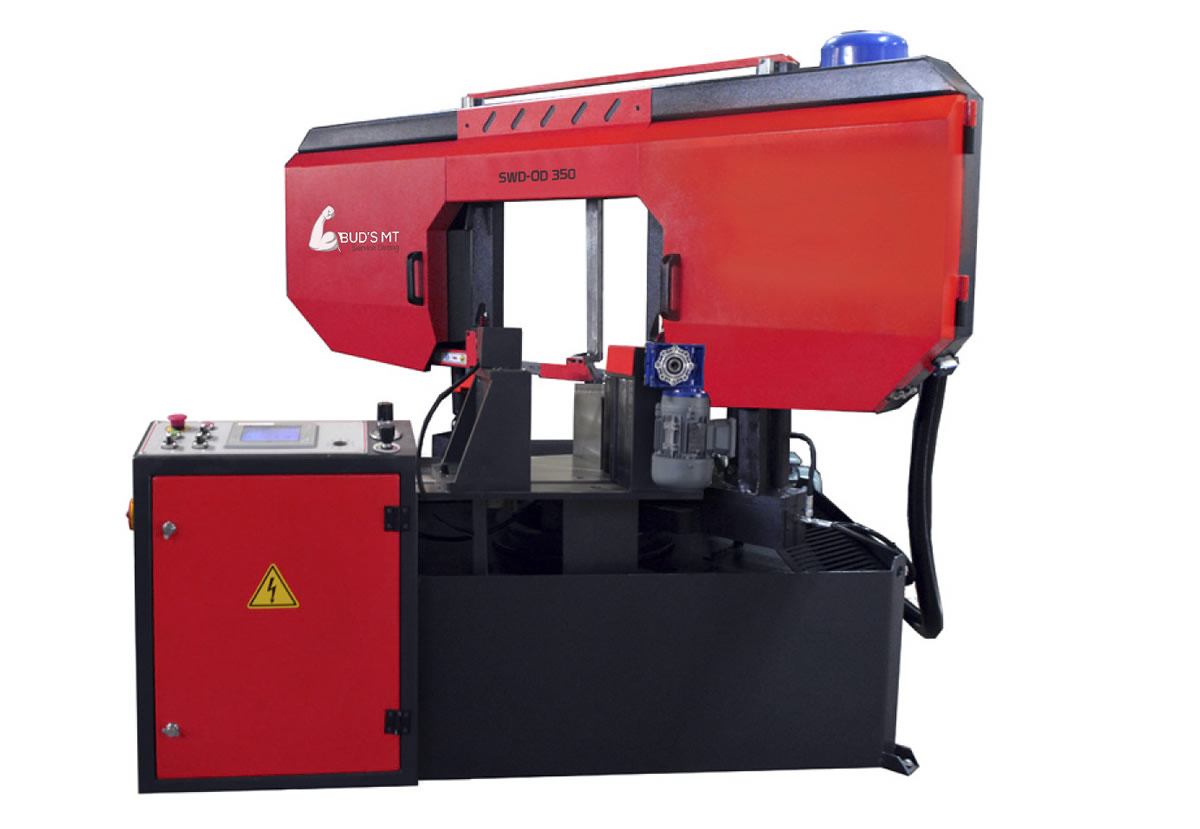

SWD-OD 350 Automatic Mitre Double Column Band-Saw

Technical Specifications
Capacity 90° Round	in	13.78”
Capacity 90° Square	in	13.78”
Capacity 90° Rectangle	in	13.78” x 14.17”
Capacity 45° Round	in	8.27”
Capacity 45° Square	in	8.27”
Capacity 45° Rectangle	in	8.27” X 13.78”
Band Dimensions	in	194.88” X 1.34” x 0.04”
Boron Oil Depot	Gallons	7.93
Hydraulic Storage	Gallons	3.96
Blade Speed	IPM	0-2362.2”
Main Motor	HP	2.95
Cutting Speed	IPM	787.4-3937.01”
Hydraulic Motor	HP	1.01
Bor Oil Motor	HP	0.12
Conveyor Motor	HP	0.59
Working Height	in	23.82”
Lenght	in	80.71”
Width	in	43.31”
Height	in	62.99”
Weight	lbs	3527.4

Standard Configurations

“Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.”

Optional Configurations

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.
