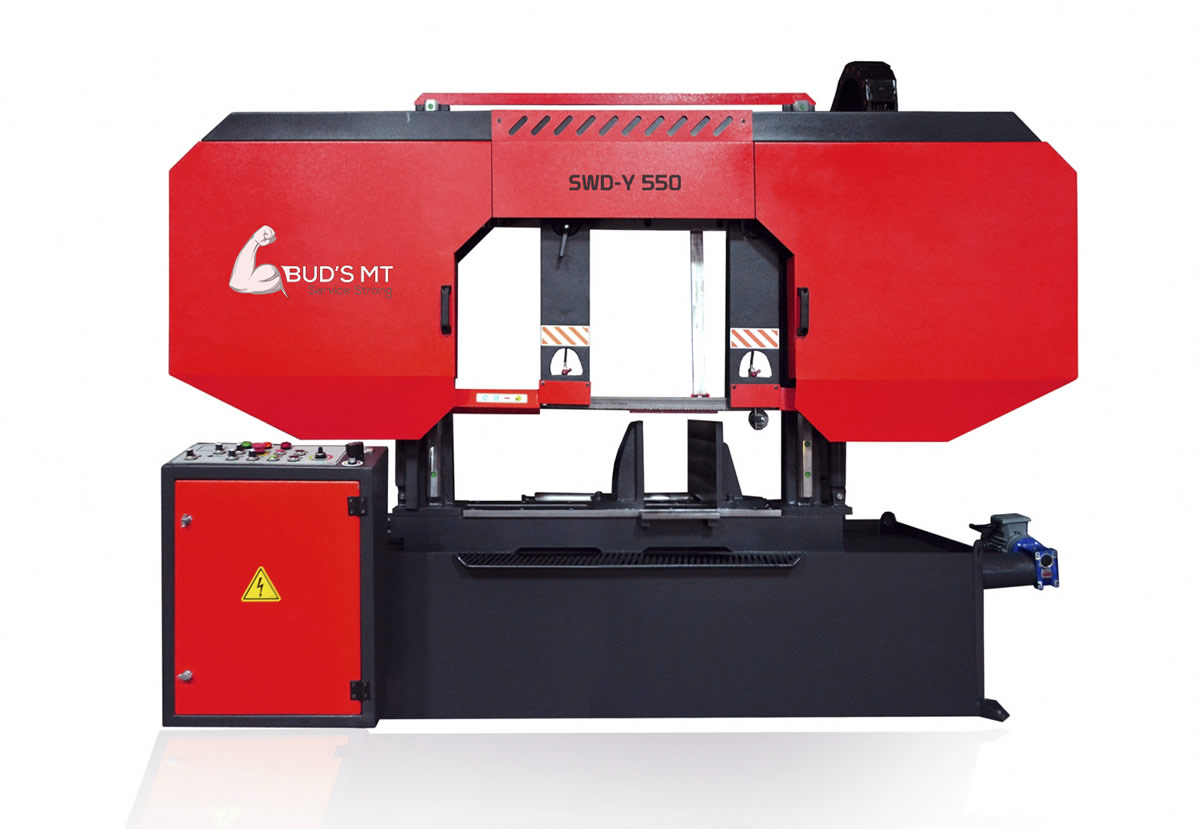

SWD-Y 550 Semi-Auto Double Column Band-Saw
BUD’S MT Linear Way Double Column band saws have been designed to give low-cost compact and rugged machines. The bow is constructed of heavy gauge steel and mounted two chromed and grinding pillars offer a strong rigid saw frame, providing a high degree of accuracy when cutting. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. These models can cope with most types of material. Blade guides with rollers and carbide pads provide precise support for the blade. Thermal overload, Chips conveyor, and no-volt release are a standard feature and the machines automatically switch off at the end of the cut and saw frame is lifted hydraulically up to the adjusted level.
| Technical Specifications | ||
|---|---|---|
| Capacity 90° Round | in | 21.65” |
| Capacity 90° Square | in | 21.65” |
| Capacity 90° Rectangle | in | 21.65” X 25.59” |
| Capacity 45° Round | in | 13.39” |
| Capacity 45° Square | in | 13.39” |
| Capacity 45° Rectangle | in | 13.39” X 21.65” |
| Band Dimensions | in | 243.31” x 1.61”x 0.05” |
| Boron Oil Depot | Gallons | 7.93 |
| Hydraulic Storage | Gallons | 6.6 |
| Blade Speed | IPM | 0-2362.2” |
| Main Motor | HP | 7.38 |
| Cutting Speed | IPM | 787.4 – 3937.01” |
| Hydraulic Motor | HP | 1.48 |
| Bor Oil Motor | HP | 0.12 |
| Conveyor Motor | HP | 0.59 |
| Feeding Height | in | 23.82” |
| Lenght | in | 74.8” |
| Width | in | 43.31” |
| Height | in | 59.06” |
| Weight | lbs | 4629.7 |
