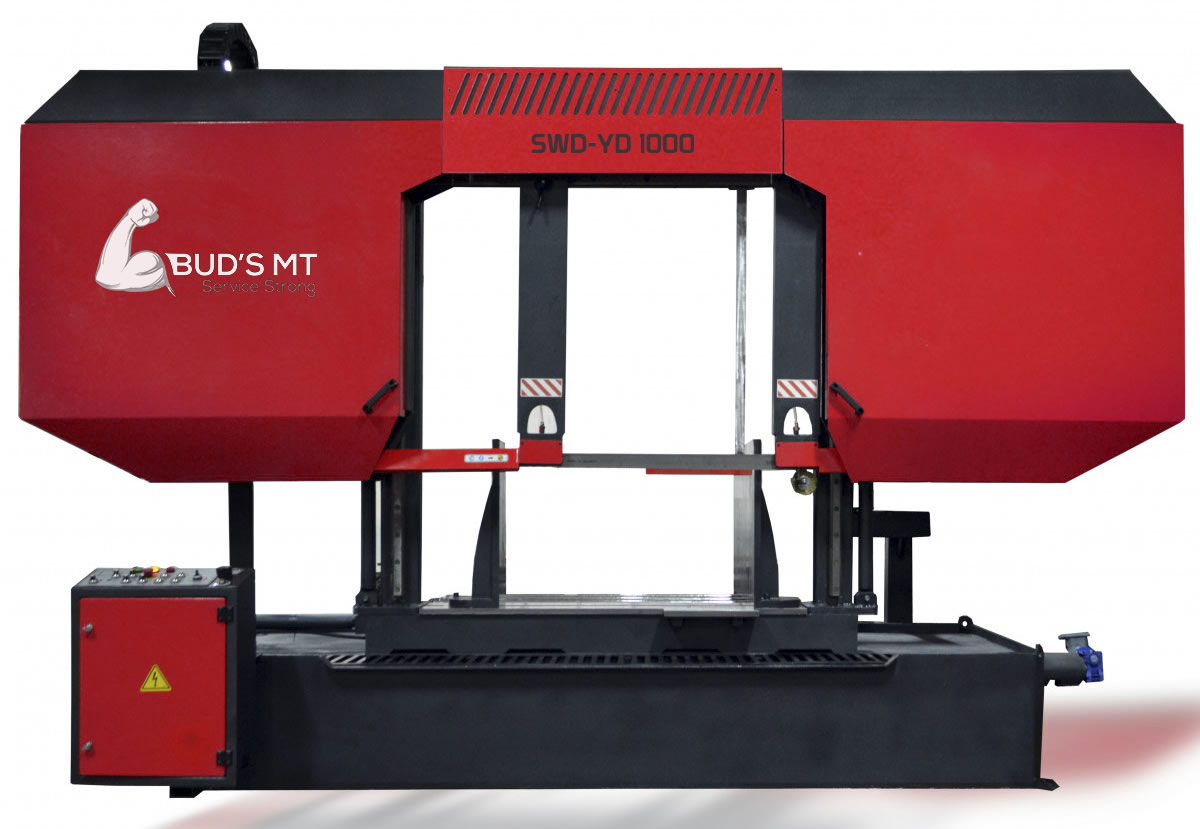

SWD-YD 1000 Semi-Auto, Mitre, Double Column Band-Saw
Double Column Bandsaws with linear guideways are ideal for MITRE cuts with different quantities. With the movement of the bow, it’s possible to cut between 90° and +45°. With height adjustment and hydraulic cutting, control allows the bow to go up over the material after the cut. All this process is controlled by a digital counter on the control panel and total duration for one cut decreases. Fixing the bow at any angle is controlled by the hydraulic brake system.
| Technical Specifications |
| Capacity 90° Round |
in |
39.37” |
| Capacity 90° Square |
in |
39.37” |
| Capacity 90° Rectangle |
in |
39.37” X 41.34” |
| Capacity 45° Round |
in |
25.59” |
| Capacity 45° Square |
in |
25.59” |
| Capacity 45° Rectangle |
in |
25.59” X 47.24” |
| Band Dimensions |
in |
377.95” X 2.13” X 0.06” |
| Boron Oil Depot |
Gallons |
7.93 |
| Hydraulic Storage |
Gallons |
0 |
| Blade Speed |
IPM |
787.4-3937.01” |
| Main Motor |
HP |
10.06 |
| Hydraulic Motor |
HP |
2.01 |
| Bor Oil Motor |
HP |
0.12 |
| Conveyor Motor |
HP |
0.59 |
| Feeding Height |
in |
29.53” |
| Lenght |
in |
170.71” |
| Width |
in |
78.74” |
| Height |
in |
122.05” |
| Weight |
lbs |
11904.8 |
