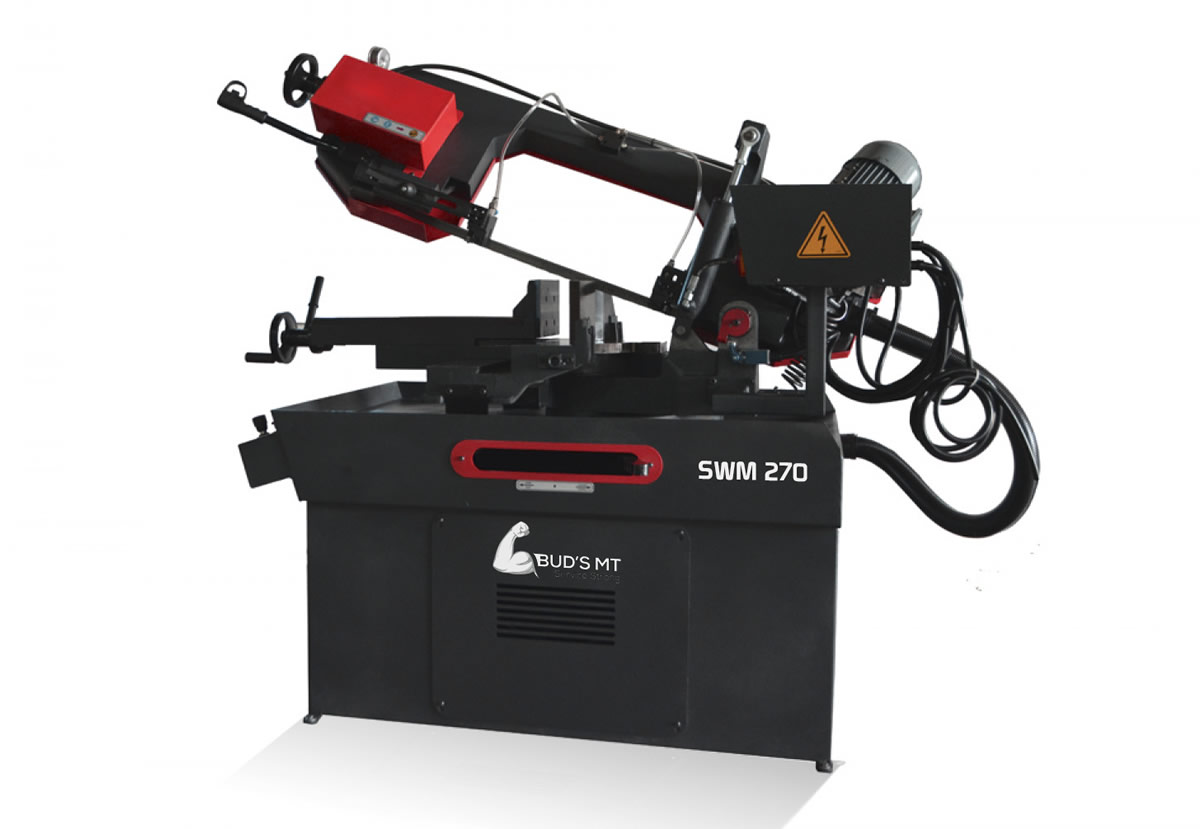

SWM 270 Manual Horizontal Band-Saw

Manual double miter for cutting profiles and solid material in steel and non-ferrous material and an excellent price-performance ratio
Sensitive cutting pressure regulation function of the material properties

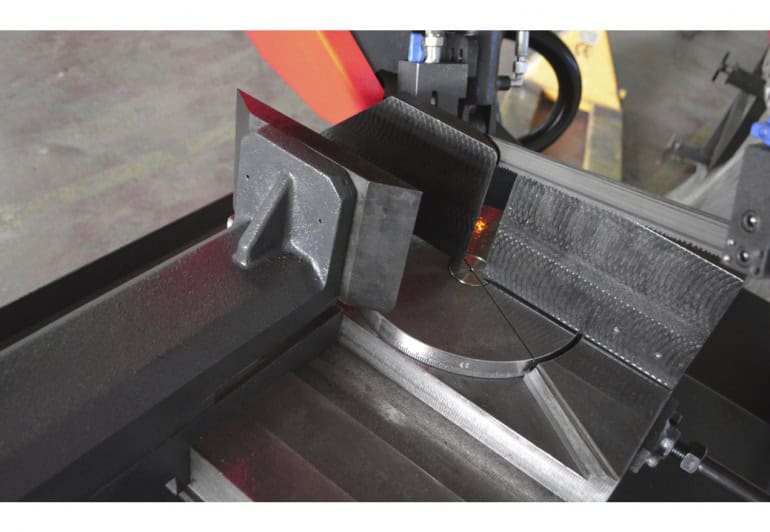

Tape guide with hard metal pads sheets and rolls
Automatic shut-off after cut end
Manual saw frame raising on the cut end
Double speed motor 1.34/1.74 Hp Gearbox

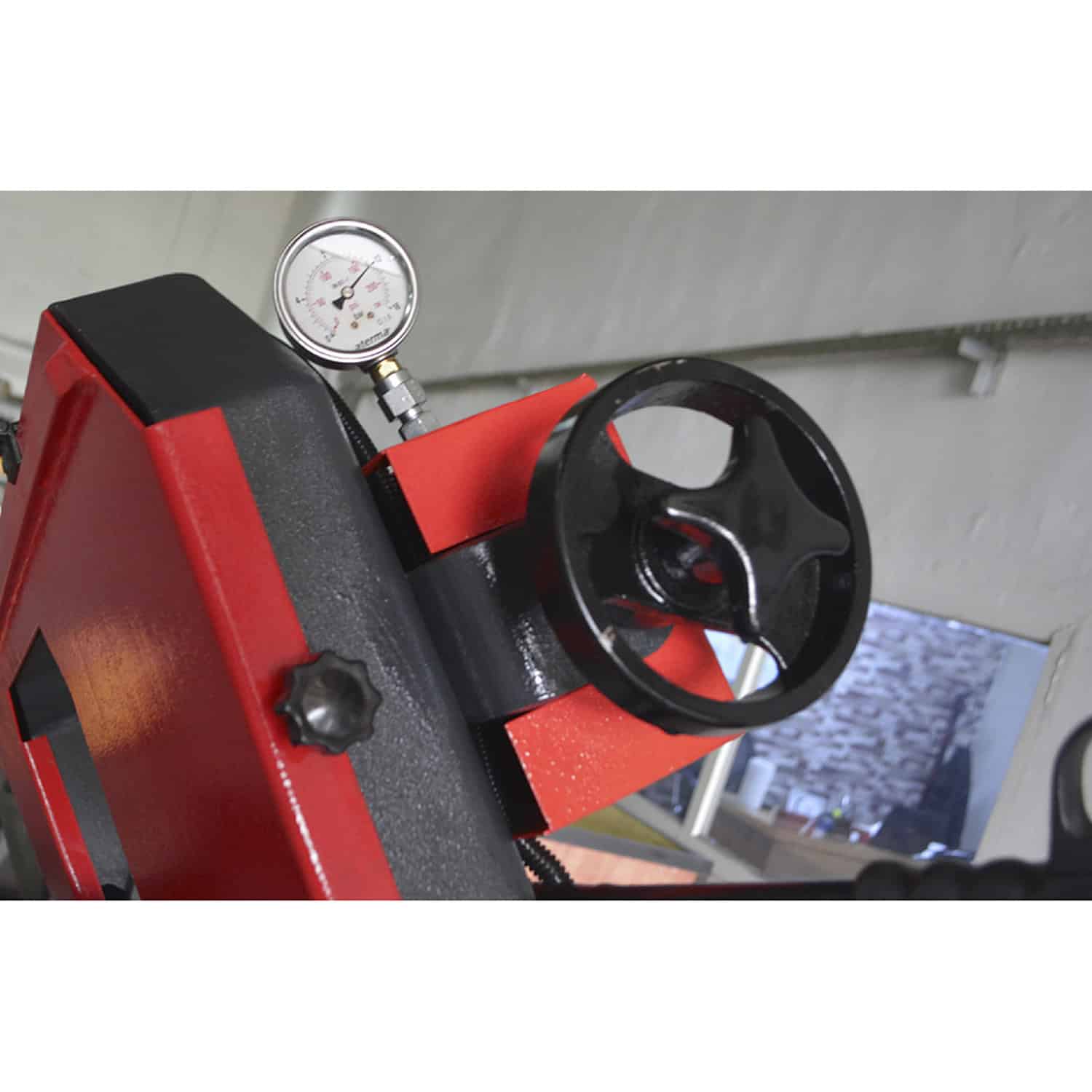

Hydraulic-mechanical belt tension

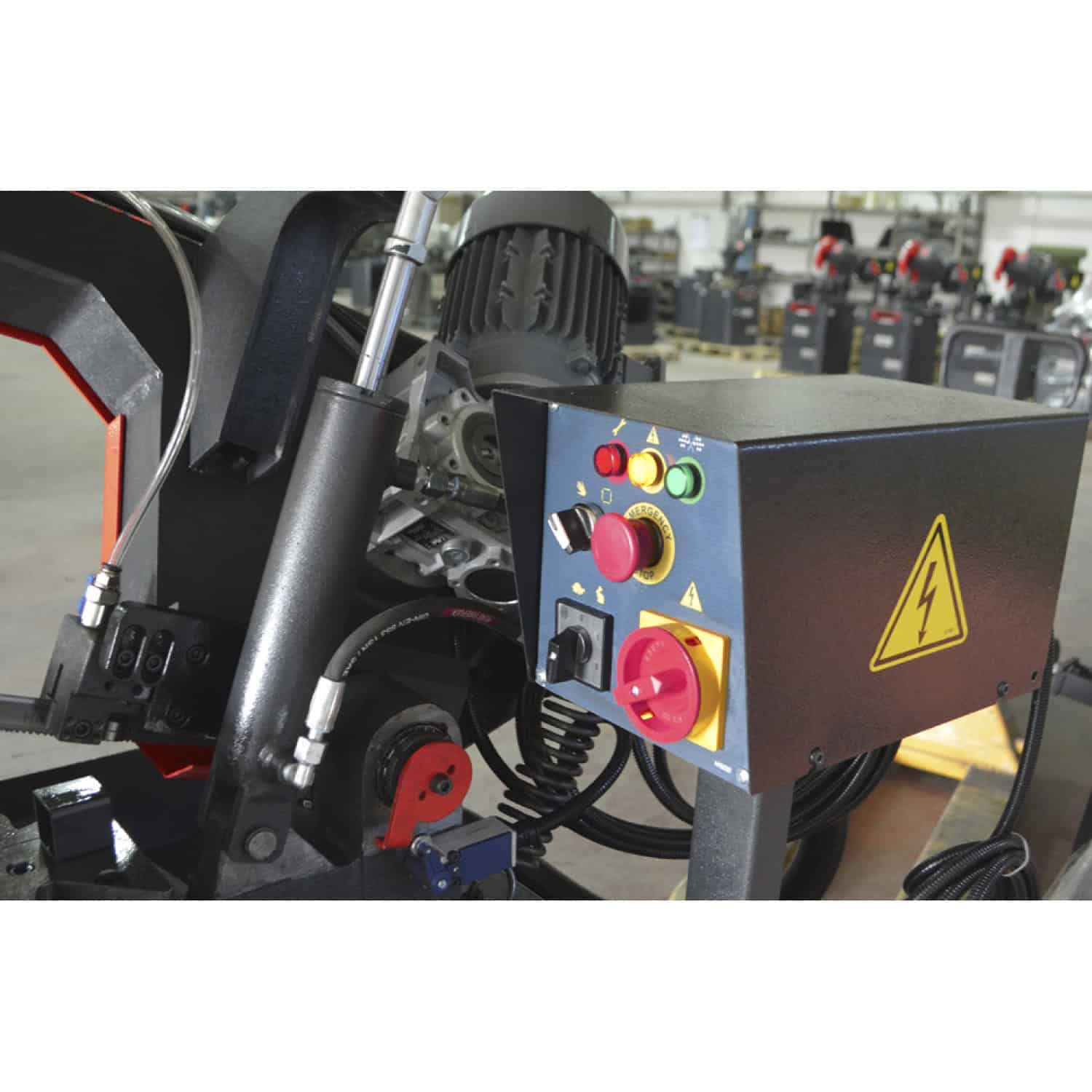

Thermal overload protection and no-volt release
Automatic belt break protection Driven

Technical Specifications
Capacity 90° Round & Square	in	10.63”
Capacity 90° Rectangle	in	10.63” x 13.78”
Capacity 45° Round & Square	in	9.06”
Capacity 45° Rectangle	in	9.06”x 10.63”
Capacity 60° Round & Square	in	5.91”
Capacity 60° Rectangle	in	5.91” x 10.63”
Band Dimensions	in	122.83” x 1.06” x 0.04”
Boron Oil Depot	Gallons	7.93
Hydraulic Storage	Gallons	3.96
Blade Speed (m/dk)	IPM	1574.8-3149.61”
Main Motor	HP	1.34/1.74
Cutting Speed	IPM	1574.8-3149.61”
Hydraulic Motor	HP	1.01
Bor Oil Motor	HP	0.12
Feeding Height	in	31.5”
Length	in	64.96”
Width	in	31.89”
Height	in	59.06”
Weight	lbs	1080.3

Standard Configurations
