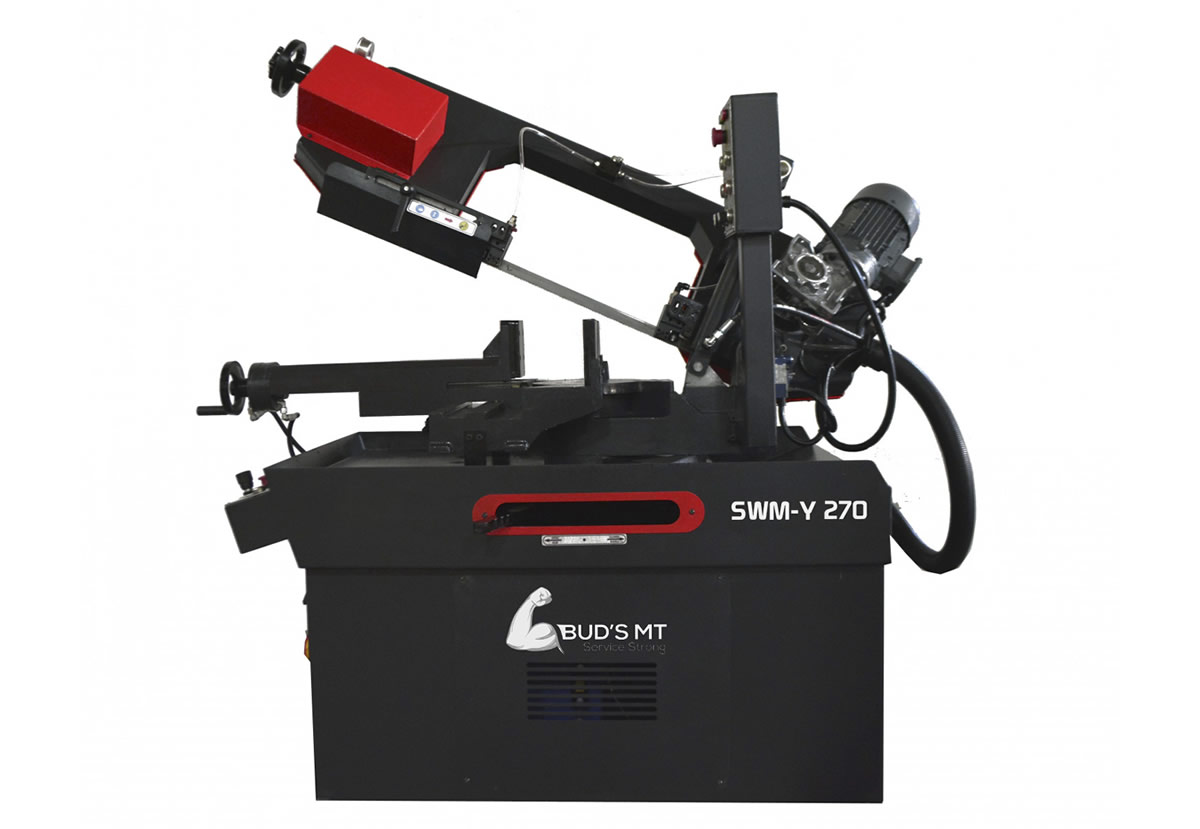

SWM-Y 270 Semi-Auto, Horizontal Band-Saw
- Semi-automatic double miter for cutting profiles and solid material in steel and non-ferrous material and an excellent price-performance ratio
- Automatic saw frame raising on the cut end
- Sensitive cutting pressure regulation function of the material properties
- Tape guide with hard metal pads sheets and rolls
- Automatic shut-off after cut end
- Manually swiveling saw frame with hydraulic clamping for optimal
- Hydraulic clamping of the horizontal vise
- Double speed motor 1.34/1.74 HP Gearbox
- Hydraulic-mechanical belt tension
- Thermal overload protection and no-volt release
- Automatic belt break protection Driven
| Technical Specifications | ||
|---|---|---|
| Capacity 90° Round+Square | in | 10.63” |
| Capacity 90° Rectangle | in | 10.63” x 13.78” |
| Capacity 45° Round+Square | in | 9.06” |
| Capacity 45° Rectangle | in | 9.06” x 10.63” |
| Capacity 60° Round+Square | in | 5.91” |
| Capacity 60° Rectangle | in | 5.91” x 10.63” |
| Blade Dimensions | in | 122.83” x 1.06” x 0.04” |
| Blade Speed (m/dk) | IPM | 1574.8-3149.61” |
| Main Motor | HP | 1.34/1.74 |
| Hydraulic Motor | HP | 1.01 |
| Cooling Motor | HP | 0.12 |
| Legnth | in | 64.96” |
| Width | in | 31.89” |
| Height | in | 59.06” |
| Weight | lbs | 1212.5 |
